Product Overview
Core Advantages
Engineered to deliver superior performance and reliability in demanding riding conditions.
High Precision & Linearity
Delivers highly accurate torque measurements with a strictly linear output, ensuring precise motor control.
Fast Dynamic Response
Instantaneous signal processing captures pedaling changes in real-time for a natural riding feel.
Excellent Interchangeability & Maintenance-Free
Standardized components allow for easy swapping without recalibration, reducing long-term service costs.
Compact Size & Wide Compatibility
Fits seamlessly into standard JIS bottom bracket shells without requiring custom frame modifications.
Non-Contact Sensing & Long Lifespan
Magnetic/inductive sensing eliminates physical wear between moving parts, drastically extending operational life.
Low Power & Long-Term Stability
Consumes less than 0.2W, preserving e-bike battery life while maintaining consistent performance over years.
Customizable Design
Available in multiple shell widths and pulse configurations to meet specific OEM requirements.

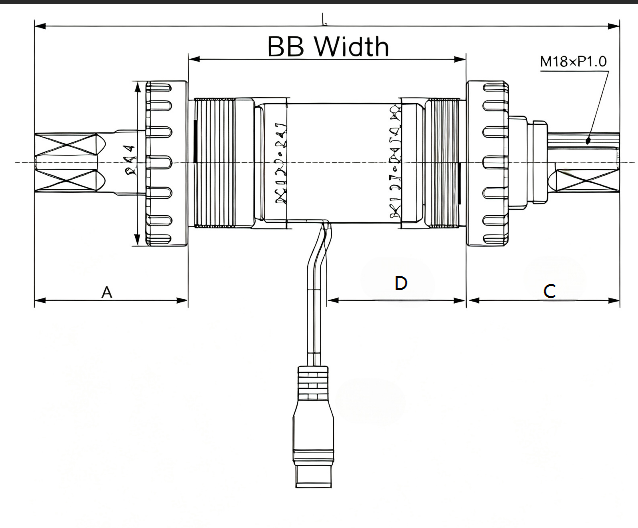

Dimension Specifications
All dimensions are in millimeters (mm). Measurements represent different assembly configurations based on shell width.
| BB Width | L (mm) | A (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| 68mm | 145/155 | 38.5/43.5 | 38.5/43.5 | 36.5/34 |
| 73mm | 145/155 | 33.5/41 | 38.5/41 | 36.5/36.5 |
| 84mm | 158.5/166 | 35.5/43 | 39/39 | 50/50 |
| BB Width | L (mm) | A (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| 100mm | 172/177 | 31/36 | 41/41 | 36.5/36.5 |
| 120mm | 197 | 36 | 41 | 36.5 |
Electrical & Mechanical Specifications
Comprehensive technical data for system integration and controller calibration.
| Input Voltage | 4.5~5.5V DC |
| Input Power | <0.2W |
| Torque Output Voltage Range | 0.74~3.3V |
| Torque Signal Slope | 35mV/N·m |
| Torque Measurement Range | 0.5~80N·m |
| Speed Signal Pulse | 32r/36r optional |
| Speed Signal Duty Cycle | 40%~60% |
| Design Standard | EN14764 |
| Cup Thread | BC 1.37*24 JIS Standard |
| Compatible Crank Types | 1-piece / 2-piece / 3-piece |
| BB Shell Width (BBTS1) | 68 / 73 / 84mm |
| BB Shell Width (BBTS3) | 100 / 120mm |
| Waterproof Rating | IP65 |
| Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -30℃ ~ +80℃ |
Interested in the Torque Sensor?
Contact our B2B team for bulk pricing, custom configurations, and OEM partnership opportunities.
Request B2B QuoteSignal Output Characteristics
Visual representation of sensor data output for controller integration.
Torque Output Characteristics
Torque and output voltage have a strict positive linear relationship. The measurement range of 0~80N·m maps directly to an output voltage of 0.74~3.3V. The greater the pedaling torque, the higher the output voltage, enabling the controller to accurately calculate pedaling force.
Speed Pulse Output Characteristics
The sensor outputs a fixed pulse count per rotation (32 or 36 pulses) with a highly stable 40%~60% duty cycle across a full 0~360° crank rotation. The controller calculates cadence and riding speed based on this pulse frequency.
